Description

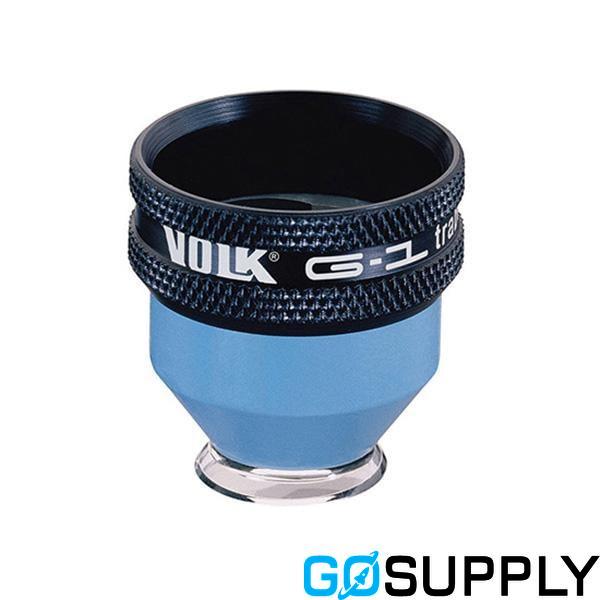

The 1 Mirror Trabeculum Lens Glass is an essential tool for ophthalmologists, designed specifically for the detailed examination and treatment of the trabecular meshwork and anterior chamber angle. Crafted from high-quality optical-grade glass, this lens offers exceptional clarity and durability, ensuring precise visualization during critical procedures.
Key Features
- Single Mirror Design: The lens features a one-mirror design with a 62° angle, providing targeted visualization that enhances the examination of specific areas within the eye.
- High Magnification: With a magnification of 1.50x, it delivers high-resolution imaging, allowing for detailed observation of the trabecular meshwork and iridocorneal angle.
- Flange Options: Available in both flanged and no-flange versions, the lens offers versatility for various clinical needs. The flanged model is particularly recommended for laser procedures, providing stability and secure placement.
- Anti-Reflective Coating: The optional broadband anti-reflective coating minimizes reflections, improving image quality and facilitating clearer observations.
Versatility and Use
This lens is suitable for a range of procedures, including laser trabeculoplasty and selective laser trabeculoplasty (SLT). Its design optimizes both static and dynamic gonioscopy, allowing for easy rotation and reducing operator fatigue. The flanged contact element enhances stability, making it a reliable choice for precise laser applications.
Maintenance and Care
Proper maintenance is crucial for the longevity and performance of the lens. It should be cleaned with a mild, pH-neutral detergent and a soft, lint-free cotton cloth. Rinsing with sterile, distilled, or deionized water is recommended, followed by drying with an ultra-soft, low-lint cotton cloth. High-level disinfection is necessary after patient contact, with compatibility for various approved disinfectants.
Sterilization Guidelines
The lens is compatible with several sterilization methods, including Ethylene Oxide (ETO), steam, and V-Pro systems. It is important to avoid using alcohol, peroxide, or acetone on the lens. After cleaning and disinfection, the lens should be stored in a clean, dry environment, ideally in a dedicated sterilization case or tray.
Intended Use
The 1 Mirror Trabeculum Lens Glass is intended for ophthalmic professionals who require precise visualization for procedures such as gonioscopy and laser trabeculoplasty. Its superior design and construction make it an invaluable asset in achieving successful clinical outcomes.
