Description

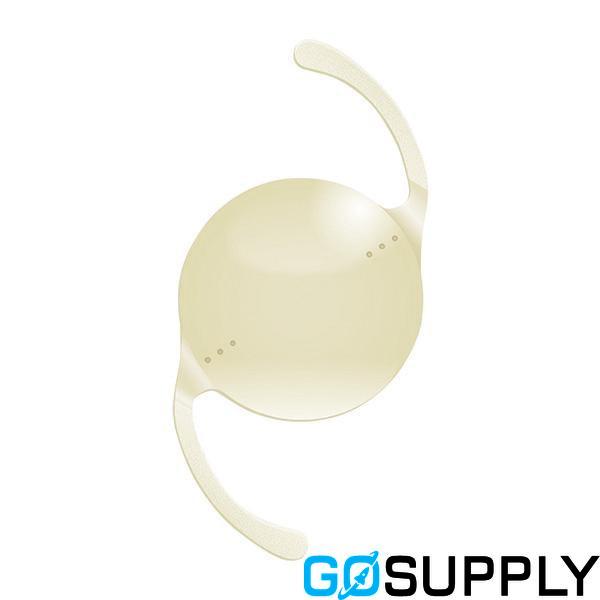

The HOYA TORIC IOL XY1AT4, part of the Vivinex™ Toric range, is a specialized intraocular lens designed to enhance visual outcomes for cataract surgery patients with astigmatism. Crafted from glistening-free hydrophobic acrylic, this lens integrates both UV and blue light filters, ensuring long-term clarity and protection.

Advanced Optic Design

• Aspheric Optic: Features an anterior aspheric surface to partially compensate for corneal spherical aberration, enhancing image quality.
• Toric Surface: The posterior toric surface is tailored for precise astigmatism correction.
• Square Edge: A sharp, square optic edge design minimizes posterior capsule opacification (PCO), maintaining lens clarity.

Dimensions and Power

• Optic Diameter: 6.00 mm
• Overall Length: 13.00 mm
• Spherical Power Range: +10.00 to +30.00 diopters in 0.50 D increments
• Cylinder Power: For the XY1AT4 model, a cylinder power of 2.25 D at the IOL plane (1.56 D at the corneal plane)

Haptic Design

The lens features a textured-rough haptic surface made from the same acrylic material, promoting enhanced rotational stability. Clinical studies show over 96% of these lenses rotate ≤5°, with a median rotation of 1.1° up to six months post-surgery.

Injector System

Preloaded in the Vivinex™ iSert® or multiSert™ injector system, the lens allows for a recommended incision size of 2.20 mm, facilitating seamless implantation.

Optical Performance

The proprietary aspheric optic design improves image quality and tolerance to coma. Active oxygen processing creates a smooth, regular IOL surface, while the square edge design significantly reduces PCO. Clinical results demonstrate lower PCO and Nd:YAG capsulotomy rates compared to other IOLs.

Clinical Benefits

The HOYA TORIC IOL XY1AT4 offers:

• Long-term biocompatibility
• Consistent image quality
• Low incidence of PCO

These features make it a reliable choice for healthcare professionals aiming for precise visual correction in cataract surgery patients.

Support Tools

The lens's performance is further supported by the HOYA Toric Calculator, including the Abulafia-Koch Regression formula, for accurate cylinder power calculation. Availability may vary by country, aligning with local clinical needs.
