## Description

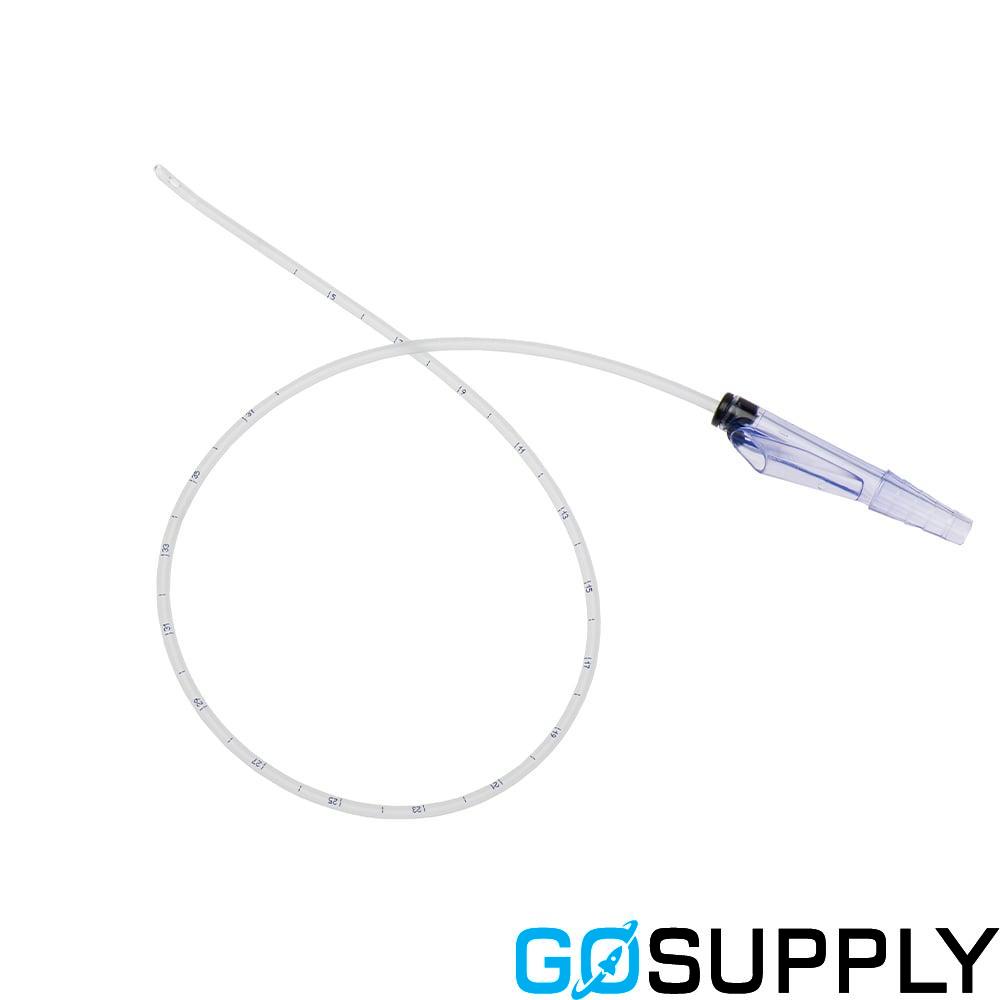

The m|devices Suction Catheter is designed for the removal of airway secretions through endotracheal and tracheostomy tubes, combining an atraumatic tip profile with precise suction control. Its 10 French size (black color code) and 560 mm length support controlled insertion and efficient secretion management while maintaining visibility and connection security during use.

### Intended Use

- Removal of airway secretions via endotracheal and tracheostomy tubes, enabling smooth insertion and controlled, intermittent suctioning.

### Features and Design

- 10 Fr catheter with black color coding for quick size identification.

- 560 mm overall length to accommodate typical airway suctioning pathways.

- Round, closed distal tip with bilateral side eyelets to promote effective suction while minimizing mucosal trauma.

- Y-type control vent enables intermittent suction when occluded, allowing the clinician to modulate suction application.

- Soft, transparent medical-grade PVC for handling ease and secretion visibility; latex-free.

- Incremental depth markings starting 4 cm from the distal tip to assist with controlled advancement and positioning.

- Stepped connector provides a secure connection to standard suction tubing.

### Materials and Sterility

- Material: Soft, transparent medical-grade PVC; latex-free.

- Sterilization: Ethylene oxide (EO).

- Sterility status: Supplied sterile; single-patient, single-use.

### Handling and Packaging

- Inner sleeve with perforations to support aseptic technique during catheter manipulation.

- Peel-open pouch for straightforward sterile presentation.

### Specifications

- Size: 10 French (black color code)

- Length: 560 mm

- Tip: Round, atraumatic closed distal tip with bilateral side eyelets

- Suction control: Y-type control vent (intermittent suction when occluded)

- Depth markings: Incremental markings starting 4 cm from distal tip

- Connector: Stepped connector for secure tubing fit

### Documentation

- Supplied with or supported by: Instructions for Use (IFU), Product Data Sheet (PDS), and Brochure.
